Place Marker dynamic properties

[Rindis]

So, I have a piece that has a couple different text properties (that can be set by the user as is typical for the trait). I want to be able to clone it keeping the current value for one, and incrementing the other (which is generally a numeric sequence number).

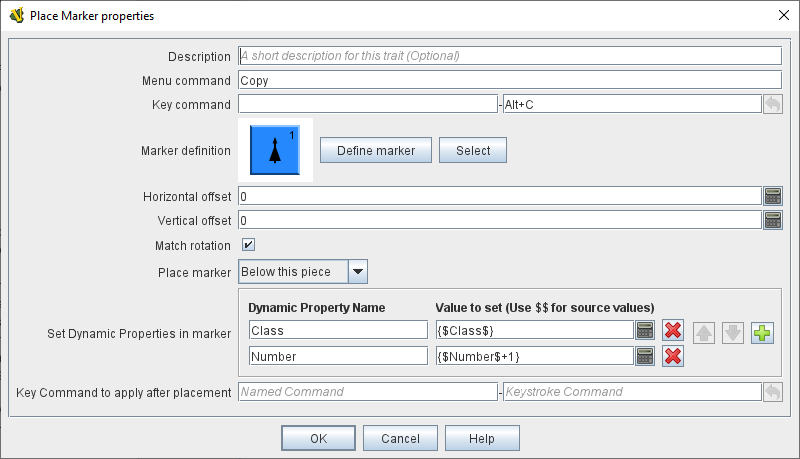

So, set up the text fields as slaved to Dynamic Properties, handle the value setting through user prompts. Then use Place Marker to place a new instance of the piece and copy the values from the old one, incrementing the sequence as it goes.

It seems this only works for numeric values. Normally $Number$ is numeric, and if it is, the new marker increments the number fine. But it doesn’t have to be numeric, and if it isn’t, the new marker drops back to the default of “1” instead of keeping the original value (possibly doing something odd, thanks to the ‘+1’). $Class$ is typically text, (“D”, “CA”, etc), and that just loses the value completely in the new marker.

(Aside #1: Is there a way to define a prototype setting up these text labels/dynamic properties, have a piece use the prototype, and define its own starting value?)

(Aside #2: Is it possible to increment letters? Property has value “A”, you tell it ‘$example$+1’ and it becomes “B”. Not what I want here, but I might elsewhere.)

[cholmcc]

@Rindis

But it doesn’t have to be numeric, and if it isn’t, the new marker drops back to the default of “1” instead of keeping the original value (possibly doing something odd, thanks to the ‘+1’). $Class$ is typically text, (“D”, “CA”, etc), and that just loses the value completely in the new marker.

In the case that Number isn’t a numeric value, and you do the Copy command, do you then see messages in the chat? Or in your errorLog?

The reason why the Class Property isn’t set correctly is likely because setting the Number property failed miserably.

If the value of the Number property in the source piece is not a numeric value, then the BeanShell expression

{$Number$+1}

could fail miserably, though, sometimes, if Number has a string value, then the + will be interpreted as concatenation. E.g., if Number="A" in the source, then the copy will get Number="A1". You can check that Number is an integer or double in the source with

{ Number instanceof Integer || Number instanceof Double ? Number : Integer.parseInt(Number) }

but those calculations are probably best done in a CalculatedPropertyTrait.

@Rindis

(Aside #1: Is there a way to define a prototype setting up these text labels/dynamic properties, have a piece use the prototype, and define its own starting value?)

Short answer - No.

1. Traits, and particularly traits like Dynamic Property have parameters (or type) and state.
2. Pieces that include a Prototype, include the traits of the prototype, as defined in the prototype, at the exact spot where the prototype is referenced, in the list of piece traits.
3. However, this “unrolling” of prototypes only happens when a piece is instantised - for example by dragging the piece from a Game Piece Palette, by an At-Start Stack, or similar.
4. Only when the prototypes are unrolled into the piece do the piece gain an individual state.

In other words. If your piece with the Number property lives in the Game Piece Palette, then it isn’t a true piece (i.e., it does not have individual state - value of Number). When you do drag it to the map, then it becomes a “real” piece and it gains individual state (value of Number).

You can also place your piece on some map using an At-Start Stack, and if you press the “reposition stack”, then you can probably manipulate the piece a bit by right clicking the piece.

@Rindis

(Aside #2: Is it possible to increment letters? Property has value “A”, you tell it ‘$example$+1’ and it becomes “B”. Not what I want here, but I might elsewhere.)

Sure. If you Property Number has the value A, then

{ (char)((int)Number.charAt(0) + 1) }

will give you the value “B”.

Yours,
Christian

[Rindis]

Forcing the Number dynamic property into numeric mode caused no changes in behavior.

Creating counter, values “D” and “1”, and then using the “Copy” command generates a new counter with values “” and “2”, with no messages in chat, and no entries in the error log after the starting of the module.

The earlier version, with dynamic properties that are not declared as numeric, and no default value for $Class$ given behaved the same way. Any input Class value would be ignored in the copy, and no messages would fire. (And just verified nothing in the error log under that setup either.)

The last part gets a bit beyond me.

A1 - About what I figured, though I was more thinking in terms of a value in the piece that transfers over to the prototype-generated property when pulled off the pallet (an ‘on create’ trigger).

[cholmcc]

@Rindis

Forcing the Number dynamic property into numeric mode caused no changes in behavior.

The numeric setting of a Dynamic Property only affects the user facing interface - BeanShell variables are dynamically typed (can change type at any time).

@Rindis

Creating counter, values “D” and “1”, and then using the “Copy” command generates a new counter with values “” and “2”, with no messages in chat, and no entries in the error log after the starting of the module.

$...$ references in BeanShell expressions are (textually) substituted before the BeanShell expression is evaluated (see also here). Thus, if you source Class property has the value A, then

{$Class$}

will become

{A}

before it is evaluated That is a reference to some (non-existent) property A. A reference to an non-existing variable typically gives you back the empty string. If you know Class contains a string value, then your expression should be

{"$Class$"}

which then becomes

{"A"}

before BeanShell evaluation.

For the Number property, if it has the value 41 in the source piece, then

{$Number$+1}

becomes

{41+1}

before BeanShell evaluation, which, of course, evaluates correctly to 42.

Note, if Number in the source piece has a string value, say X, then

{$Number$+1} -> {X+1}

which again is a reference to a non-existing property. As before, that will give you the empty string, so you have

{""+1}

which evaluates to "1".

Perhaps you can give a link to your module so that we can see for ourselves what goes wrong. Please also give a few words on how to reproduce the problem.

Yours,
Christian

[Rindis]

Try http://www.rindis.com/SFB%200.4.3.vmod

Go to Pieces → Federation → Markers → Drone

Pull into a new game (any set up).

Default values - Class = “”, Number = “1”

Use alt-c Copy - new counter, should have “” and “2”. This is fine.

Use control-n to set Number to, say, “A”. Alt-c = “” and “1”. Defaulting back to 1 is acceptable, but I’d kind of like it to stay as-is, and possibly iterate through letters if the value is just a single letter.

Use control-c to set Class to, say, “D”. Alt-c = “” and “2”. This is the real problem. Class should just be directly copied over without changes, and it never does. Since the Number part works, this what I find befuddling.

[cholmcc]

@Rindis

Use control-n to set Number to, say, “A”. Alt-c = “” and “1”. Defaulting back to 1 is acceptable, but I’d kind of like it to stay as-is, and possibly iterate through letters if the value is just a single letter.

Vassal won’t allow me to set Number to A, "A", or similar. I guess the numeric setting is respected by the interface.

Not that it should matter, but I’m using Vassal 3.7.22 on Linux with OpenJDK 27-ea.

@Rindis

Use control-c to set Class to, say, “D”. Alt-c = “” and “2”. This is the real problem. Class should just be directly copied over without changes, and it never does. Since the Number part works, this what I find befuddling.

You need quotes around the $Class$ reference in your Place Marker trait:

{"$Class"}

as explained why above.

Please remember to flag the reply that solve your issue as a solution. That helps others find possible solutions to their problems. It can be any post, including your own, but only you, as the OP, can do that.

Yours,
Christian

[Rindis]

Ah, right, I set Number to numbers only while doing all the testing. It didn’t start that way, and probably won’t finish that way, but I forgot about it.

Okay, I had not caught the actual prescription in the previous post. It works. I still don’t get why in one case it pulls over the value and does an operation (and possibly fails it; sure), and the other it just doesn’t pull over the value at all…

For Aside 2 - It seems to me I should be able to do an IF to check if the current value is a single letter, and then increment it based on your initial answer, but that’s beyond my knowledge (checking the current value status); and, preferably check if the value is an integer, and only increment for that. (So, “A1” or something would just be left alone. If the player is going to be complex, they can update it themselves.)

[cholmcc]

@Rindis

I still don’t get why in one case it pulls over the value and does an operation (and possibly fails it; sure), and the other it just doesn’t pull over the value at all…

Read through the above explanation again. In summary, if Number has the string value A, then
{$Number$+1}
evaluates to
{A+1}
but the Property A isn’t defined, so that evaluates to the empty string, and you get
{""+1} -> 1
It is not that the Number property is “reset” to it’s default value, but because of the above logic.

@Rindis

preferably check if the value is an integer, and only increment for that.

In your prototype Black, define the Calculated Property with

• Description: Check type of Number, and increment based on that
• Name: IncrementedNumber
• Expression: (Number instanceof String ? (Number != "" ? "\""+(char)((int)Number.charAt(0)+1)+"\"" : 1) : Number+1)

In your Place Marker trait of the Drone piece, replace the expression
{$Number$+1}
with
{$IncrementedNumber$}

How this works:

• The Place Marker trait delegates the calculation of the incremented value of Number to a Calculated Property trait.
• In that Calculated Property, the current type and value of Number is inspected:
  • Number instanceof String evaluates to true if the value stored in Number is a string.
  • The tenary expression condition ? value-if-true : value-if-false is an inline if-then-else. Thus, if Number has a string value, then
    (Number != "" ? "\""+(char)((int)Number.charAt(0)+1)+"\"" : 1)
    is evaluated.
  • Number != "" protects against the case where Number has no value or is the empty string. If Number is not the empty string, then
    "\""+(char)((int)Number.charAt(0)+1)+"\""
    is evaluated.
    • (int)Number.charAt(0) takes out the first character of Number, and casts it to an integer.
    • We then add 1 to that integer, and
    • (char)((int)Number.charAt(0)+1) then casts that incremented number to a character (or string).
    • The surrounding "\""+ … +"\"" adds _explicit quotes into the string value of Number when it is assigned to IncrementedNumber.
  • If Number=="", then we fall back to the value 1
  • If Number does not hold a string value, thenNumber+1 is evaluated and that is of course a simple numerical increment.
• When the Place Marker trait sets the Number property in the newly placed piece, it will use the value of IncrementedNumber in the source piece.
  • If the value of Number in the source piece was a non-empty string, then the value of IncrementedNumber will be a quoted incremented character - e.g., if Number=A, in the source piece, then IncrementedNumber in that piece will be "B", so that the reference
    {$IncrementedNumber$} -> {"B"}
  • if the value of Number in the source piece is a number, then the value of IncrementedNumber will be simply Number+1 - e.g., if Number=41 in the source piece, then IncrementedNumber in that piece will be 42, and
    {$IncrementedValue$} -> {42}

Yours,
Christian
